  Final Version 2026 (Revision 3) Stable

  tgohle released this 2026-09-27 11:25:44 +00:00 | 0 commits to master since this release

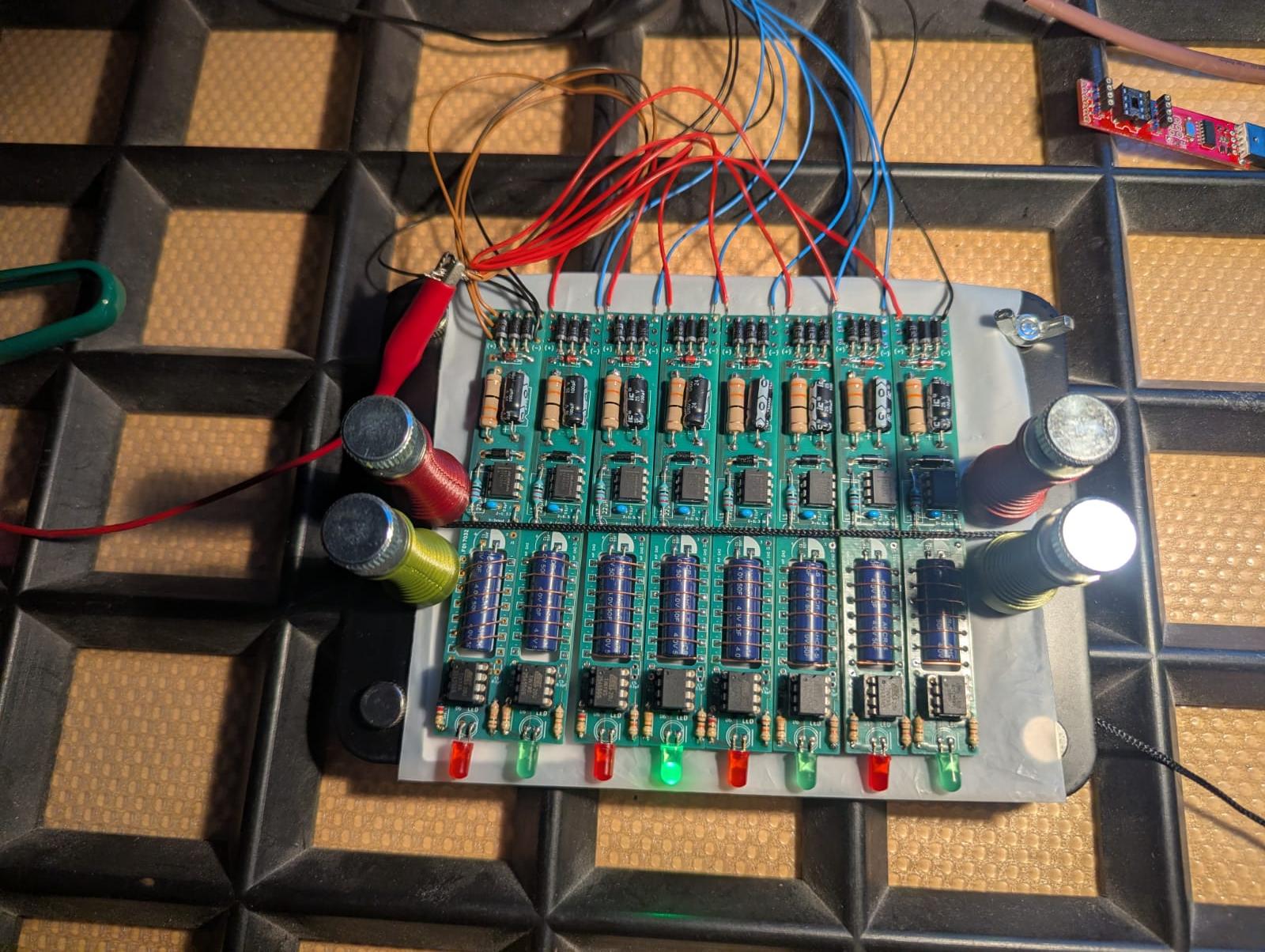

  Build 10pcs and tested outdoor:

  • RED LED: R2 = 680Ohm, 2.2 mA. A little bit dark but blinks after sunny day for >8h
  • GREEN LED: R2 = 330Ohm, 2.2 mA Very bright, blinks after sunny day for > 8h

  Time tested with Morse Code "TOGO-LAB.IO 2026"

  Charging tested in Lab:
  With Z-Diode 3.9V: Fully charged after 4,5V / 0.01mA after ~3h 15min. Fully Charge could reach 4.010V, so a little bit higher than Supercap = 4V.

  Pictures / Videos:

  • Assembly

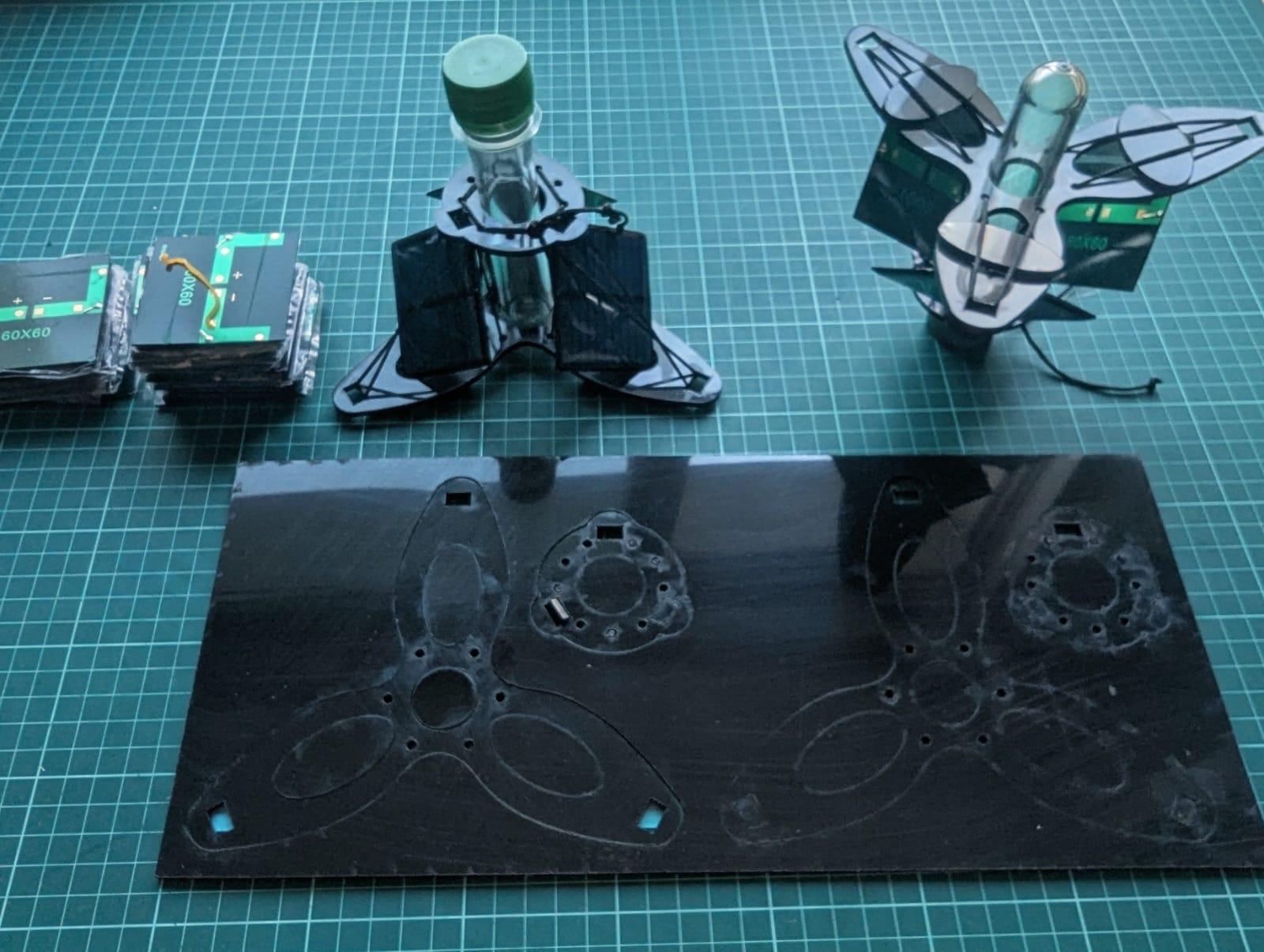

  • Housing
